012035-1 · 87K Intensifier Check Valve Maintenance Kit
Reference
012035-1
Compatible with
Flow
Also listed as
1-14522, 392003-2, FW012035-1, AW012035-1
Category
6000 bars
Brand names and part numbers of third parties are shown only to identify compatibility. They do not imply that the part is an original spare part of that manufacturer.

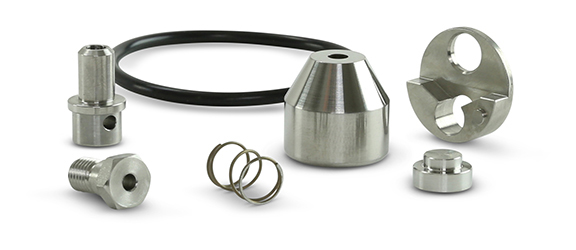

The kit includes Retaining Inlet Screw, Inlet Poppet, Support, Seat, Poppet, Spring, Spring Seat, and O-Rings

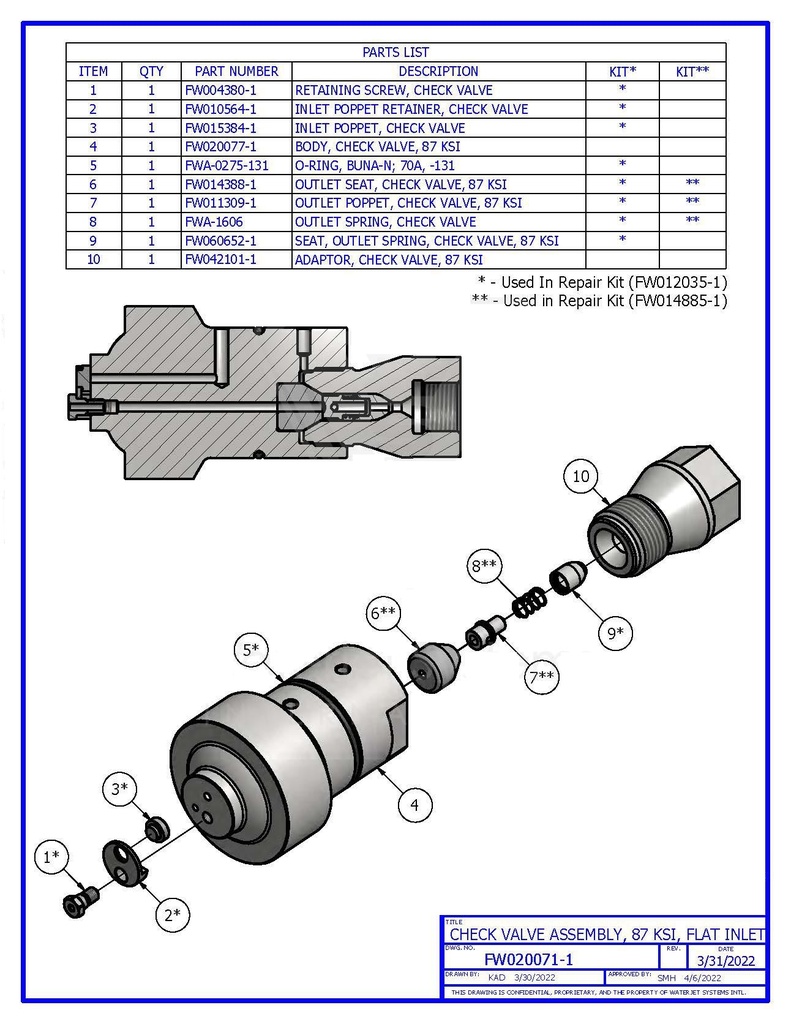

This Kit Contains:
1 - FW004380-1 Retaining Screw, Check Valve
1 - FW010564-1 Inlet Poppet Retainer, Check Valve
1 - FW015384-1 Inlet Poppet, Check Valve
1 - FWA-0275-131 O-Ring, Buna-N, 70A, -131
1 - FW014388-1 Outlet Seat, Check Valve, 87 KSI
1 - FW011309-1 Outlet Poppet, Check Valve, 87 KSI
1 - FWA-1606 Outlet Spring, Check Valve
1 - FW060652-1 Seat, Outlet Spring, Check Valve, 87 KSI
Specifications
| Reference | 012035-1 |
|---|---|
| Compatible with | Flow |
| Type of part | Bomba |
| Working pressure | 6.000 bar |
| Weight | 0.04 kg |
| Also listed as | 1-14522, 392003-2, FW012035-1, AW012035-1 |
| Category | 6000 bars |
