Stainless Steel Shot INOX-CrNi / CrNi+ – Stainless shot for stone and concrete

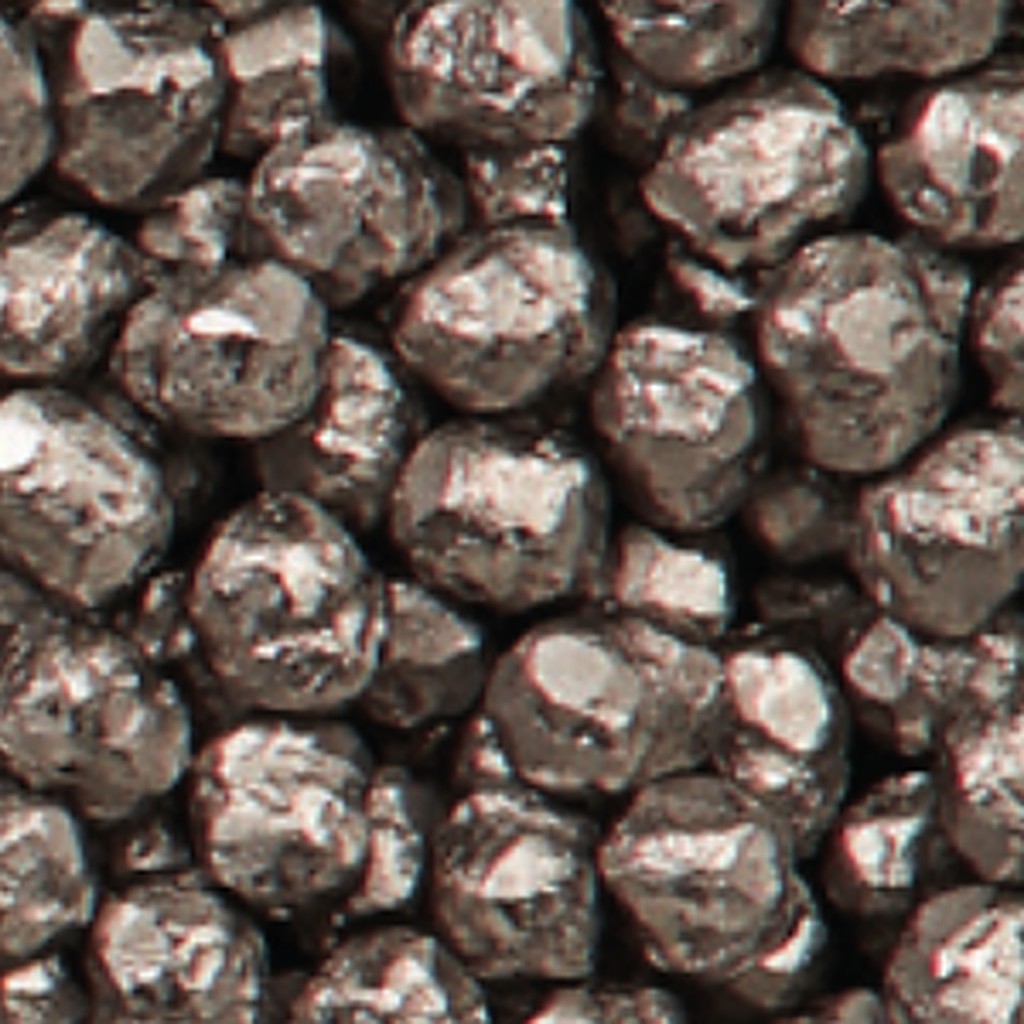

Spherical chrome-nickel stainless steel shot for pressure blasting and wheel blasting. Made for demanding processes: natural stone, concrete and shot peening. Two versions, INOX-CrNi and INOX-CrNi+, in grain sizes from 0.25 to 2.00 mm.
Documents
Specifications
| Sales unit | kg |
|---|---|
| Category | Blast Abrasives |
INOX-CrNi is a Kuhmichel stainless steel blasting medium for demanding blasting processes. It is suitable for shot peening applications as well as for use in the concrete and natural stone industry.
It delivers reproducible results and consistently stable blasting performance in daily operation. Users benefit from long service life, reliable processes and outstanding corrosion resistance.
There are two versions with the same physical properties and grain shape. They differ in nickel content: approximately 4.5 % in INOX-CrNi and 7.5 % in INOX-CrNi+. The most suitable version depends on the application and on each customer's requirements.
Application areas
- Stainless steel equipment manufacturing
- Stainless steel sand casting
- Aluminium sand casting
- Aluminium die casting
- Zinc die casting
- Aluminium forging
- Stainless steel forging
- Concrete and natural stone processing
Blasting systems
- Pressure blasting machines
- Wheel blasting machines
Available grain sizes
| Designation | Grain size range |
|---|---|
| INOX CrNi(+) 030 | 0.25–0.40 mm |
| INOX CrNi(+) 040 | 0.40–0.60 mm |
| INOX CrNi(+) 050 | 0.60–0.80 mm |
| INOX CrNi(+) 060 | 0.80–1.00 mm |
| INOX CrNi(+) 100 | 1.00–1.20 mm |
| INOX CrNi(+) 150 | 1.20–1.50 mm |
| INOX CrNi(+) 200 | 1.50–2.00 mm |
Further grain sizes on request. We can also look at grain size mixtures to suit the application.
Packaging
- 25 kg bags on pallet of 1 t
- 1 t bulk in big bag
Physical properties
| Hardness | 450–550 HV |
| Grain shape | spherical |
| Specific gravity | typ. 6.5–7.8 g/cm³ |
| Bulk density* | typ. 3.8–4.8 g/cm³ |
*Depending on grain size.
Average chemical analysis
| Element | INOX-CrNi | INOX-CrNi+ |
|---|---|---|
| Cr | 15.50–18.00 % | 15.50–18.00 % |
| Mn | max. 8.50 % | max. 8.50 % |
| Si | max. 1.00 % | max. 1.00 % |
| C | max. 0.15 % | max. 0.15 % |
| P | max. 0.06 % | max. 0.06 % |
| S | max. 0.030 % | max. 0.030 % |
| Ni | ≈ 4.50 % | ≈ 7.50 % |
| Fe | balance | balance |
For safety reasons, we recommend using a protective screen when filling the blasting machine.
Datasheets
The INOX-CrNi and INOX-CrNi+ datasheets can be downloaded from this page.
Frequently asked questions
What is the difference between INOX-CrNi and INOX-CrNi+?
Nickel content: approximately 4.5 % in INOX-CrNi and 7.5 % in INOX-CrNi+. Hardness, grain shape and physical properties are the same. We can help you choose for your application.
Is it suitable for natural stone and concrete?
Yes. Concrete and natural stone processing is one of its application areas, together with shot peening, casting and forging.
Which grain sizes are available?
Seven standard ranges, from 0.25–0.40 mm (030) to 1.50–2.00 mm (200). Other sizes and mixtures on request.
Which machines can it be used in?
In pressure blasting machines and wheel blasting machines.
How is it supplied?
In 25 kg bags on a 1 t pallet or 1 t bulk in a big bag.
What is the price?
On request, depending on version, grain size, quantity and packaging. Ask us for a quote and we will reply with price and lead time.
Want to try it or need a price? Tell us the version, grain size, quantity and format and we will send you a quote with delivery time. Call us on +34 913 20 97 84 or write to us through the contact form.
Specifications
| Alloy | INOX-CrNi (Ni ≈ 4.5 %), INOX-CrNi+ (Ni ≈ 7.5 %) |
| Grain size | 030 · 0.25–0.40 mm, 040 · 0.40–0.60 mm, 050 · 0.60–0.80 mm, 060 · 0.80–1.00 mm, 100 · 1.00–1.20 mm, 150 · 1.20–1.50 mm, 200 · 1.50–2.00 mm, Other sizes (on request) |
| Packaging | 25 kg sack, Big bag 1 t |
