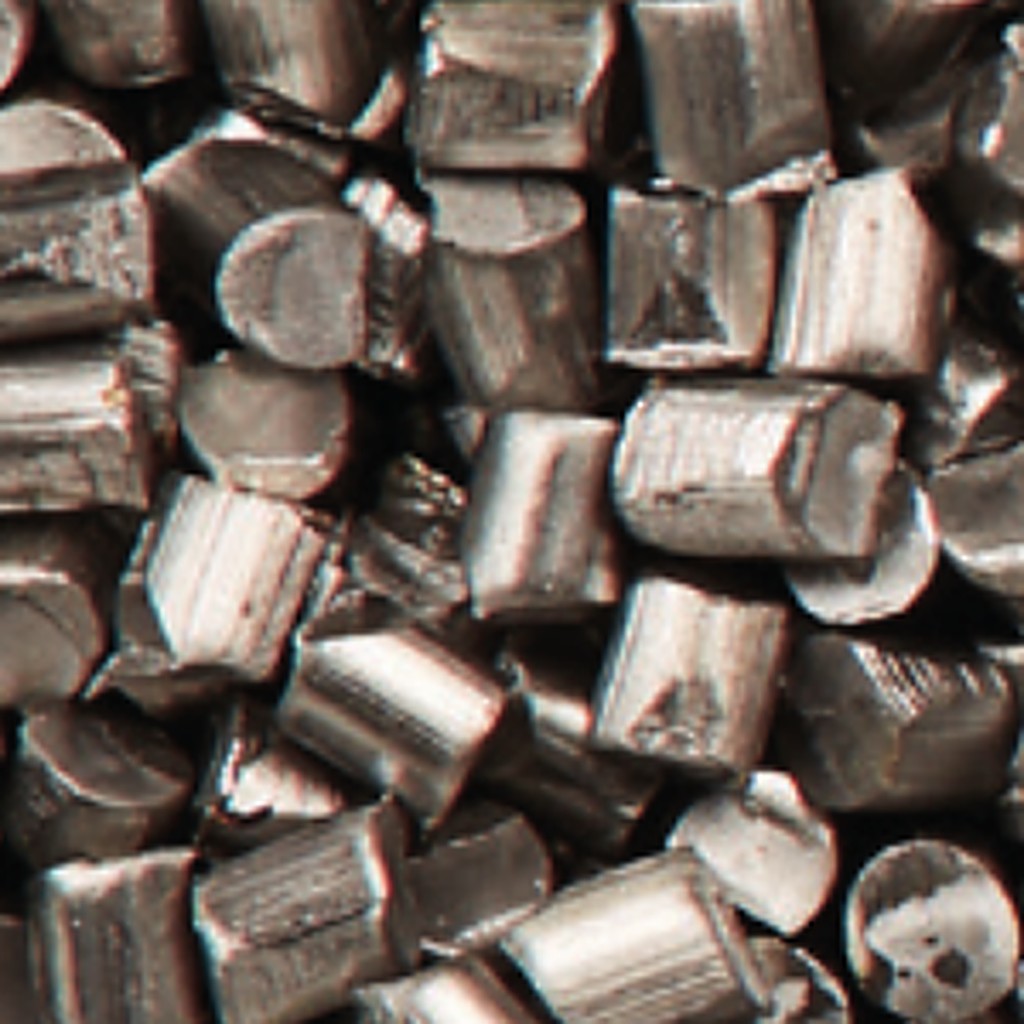

Stainless Steel Cut Wire CrNi – Reusable stainless abrasive
Stainless steel cut wire shot with chrome and nickel for pressure blasting and wheel blasting. A reusable, corrosion-resistant abrasive for shot peening, surface preparation and the treatment of granite, natural stone and concrete. From 0.3 to 2.0 mm.
Documents
Specifications
| Sales unit | kg |
|---|---|
| Category | Blast Abrasives |
Stainless Steel Cut Wire CrNi is a cut wire shot made of stainless steel with chrome and nickel, manufactured by Kuhmichel and supplied by Rexpo under the Rexpo Industrial Abrasives line. It is a high-performance material used mainly for shot peening and for processing granite and natural stone, and it is valued for its long service life and its corrosion resistance.
Its typical composition, with 11.5–20 % chrome and up to 10 % nickel, is what makes it stainless. The grain is cylindrical or rounded, with a hardness of approximately 400 to 670 HV depending on grain shape and diameter. As a reusable abrasive, it can be recovered and returned to the blasting circuit in equipment designed for it.
It can be used in both pressure blast systems and wheel blasting machines, and it is supplied in grain sizes from 0.3 to 2.0 mm, with other sizes on request. The product can be delivered to DIN 8201-4, SAE AMS 2431/4 and SAE J441 specifications.
Applications
- Reusable abrasive
- Blast cleaning
- Deburring
- Sand removal
- Descaling
- Fettling
- Surface preparation
- Shot peening
- Concrete and natural stone cleaning
Advantages
- Chrome-nickel stainless steel: corrosion resistance that comes from its composition.
- Long abrasive service life, one of the reasons this material is valued.
- Reusable: recovered and returned to the circuit in equipment with a recycling system.
- Suitable for pressure blasting and for wheel blasting.
- Twelve standard grain sizes from 0.3 to 2.0 mm, and other sizes on request.
- Deliverable to DIN 8201-4, SAE AMS 2431/4 and SAE J441.
- Two formats: 25 kg sacks on pallets or 1 t big bag.
Compatible blasting systems
- Pressure blast systems
- Wheel blasting machines
Available grain sizes
0.3, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9, 1.0, 1.2, 1.4, 1.6, 2.0 mm. Other grain sizes can be produced on request.
Packaging
- 25 kg sacks on pallets (up to 1 t per pallet)
- 1 t loose in a big bag
Technical data
| Hardness | approx. 400–670 HV, depending on grain shape and diameter |
| Grain shape | cylindrical / rounded |
| Melting point | approx. 1,450–1,500 °C |
| Specific gravity | approx. 6.5–7.8 g/cm³ |
| Bulk density* | approx. 3.8–4.8 g/cm³ |
*Depending on grain size.
Typical chemical analysis
| Cr | 11.50–20.0 % |
| Mn | max. 7.50 % |
| Si | max. 1.00 % |
| C | max. 0.15 % |
| P | max. 0.06 % |
| S | max. 0.030 % |
| Ni | max. 10.0 % |
| Fe | rest |
Deliverable standards and specifications
- DIN 8201-4
- SAE AMS 2431/4
- SAE J441
For safety reasons, we recommend using a protective strainer when filling the blasting equipment.
Datasheet
The full datasheet can be downloaded from this page.
Frequently asked questions
What is Stainless Steel Cut Wire CrNi used for?
Mainly for shot peening and for processing granite and natural stone. It is also used for blast cleaning, deburring, sand removal, descaling, fettling, surface preparation and concrete cleaning.
How does it differ from conventional steel shot?
Its composition: it contains 11.5 to 20 % chrome and up to 10 % nickel, which makes it a stainless abrasive with corrosion resistance.
Which equipment can it be used in?
In pressure blast systems and in wheel blasting machines.
Which grain size do I need?
It depends on the part, the equipment and the finish you need. As a general guide, a finer grain gives a more uniform finish and a coarser grain delivers more energy per impact. Tell us about your application and we will recommend the size; grain sizes other than the standard ones can be produced on request.
Is it reusable?
Yes. It is a reusable abrasive that can be recovered and returned to the circuit in equipment with a recycling system. The number of cycles depends on each process and installation.
How is it supplied?
In 25 kg sacks on pallets, up to 1 t per pallet, or loose in a 1 t big bag.
Which standards can it be supplied to?
It can be supplied to DIN 8201-4, SAE AMS 2431/4 and SAE J441.
Is there any safety recommendation?
Yes: we recommend using a protective strainer when filling the blasting equipment.
What is the price?
Price is on request and depends on grain size, quantity and packaging. Ask us for a quote and we will reply with price and lead time.
Need a price or advice? Tell us the grain size, quantity and format (25 kg sack or 1 t big bag) and we will send you a quote with delivery time. Call us on +34 913 20 97 84 or write to us through the contact form.
Specifications
| Grain size | 0.3 mm, 0.4 mm, 0.5 mm, 0.6 mm, 0.7 mm, 0.8 mm, 0.9 mm, 1.0 mm, 1.2 mm, 1.4 mm, 1.6 mm, 2.0 mm, Other sizes (on request) |
| Packaging | 25 kg sack, Big bag 1 t |
